Thermal lmaging Monocular
Cyclops SE Series
High Performance Imaging
The high-sensitivity NETD < 20mK sensor combined with a 384x288@12um resolution ensures ultra-clear, detail rich images even in minimal temperature differentials. With a magnification range of 3.3x-13.2x,it enables easy clear identification of target detail.
Al Calibration
Through advanced AI self-learning algorithms, Cyclops-SE continuously enhances its algorithm performance by collecting factors such as temperature and humidity in various environments, thereby providing increasingly stable target image quality and background rendering effects.
3s Startup
Fast boot ensures observation efficiency, especially when timely information is critical in emergencies. Coupled with ThermTec's energy-efficient technology, it contributes to extended battery life.
16-Hour Nonstop
Integrated with a high-capacity lithium-ion battery, it offers 16 hours of uninterrupted runtime, ensuring outdoor practicality while reducing the need for frequent recharging.
Multiple Distance Accuracies
Cyclops-SE comes equipped with AI ranging, allowing you to accurately determine the distance to your target. This is especially beneficial when multiple targets are present, enhancing efficiency and enabling quick decision-making.
User-Oriented Design
Cyclops-SE carries on with the joystick design, providing ergonomic single-handed operation. Its intuitive interface integrates multiple functions, ensuring quick and easy usability.
More Advantage
0.39-inch AMOLED Display
1-4x continuous zoom
6 Color Palettes
-20℃—+50℃ Operating Temperature
IP67 Waterproof Rated
Real-time Notification
Specifications

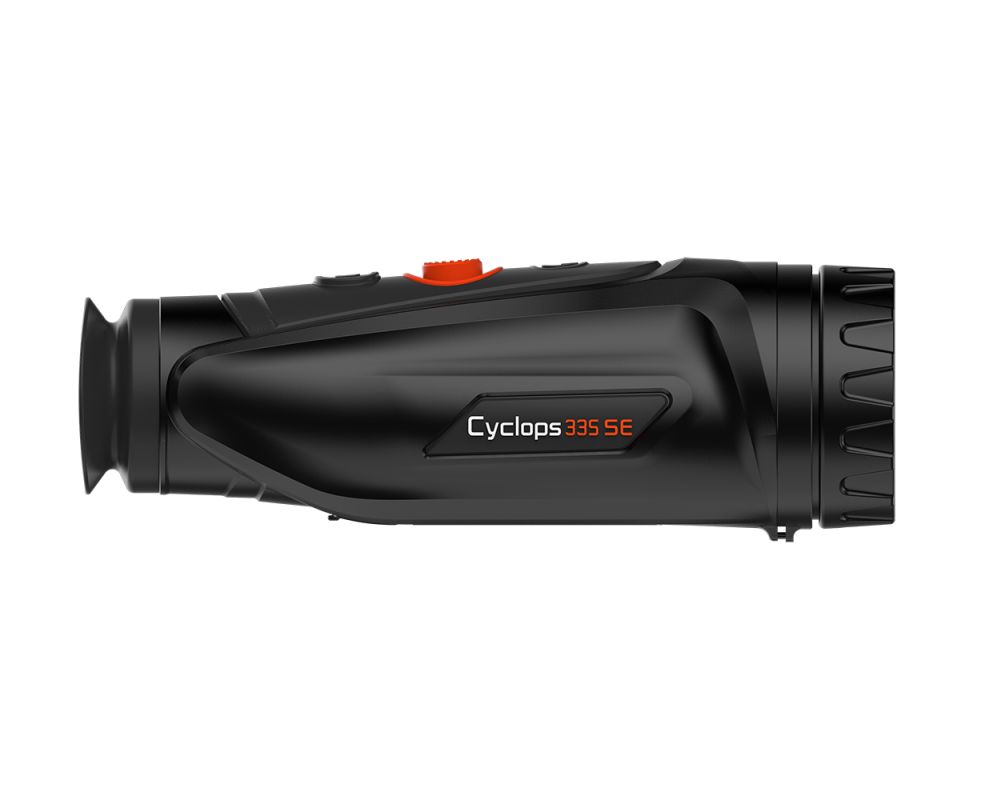

Cyclops 335 SE
Cyclops 335 SE
| Resolution | 384×288 |
| Pixel pitch | 12μm |
| NETD | 20mK@300k |
| Spectral range | 8-14μm |
| Frame rate | 50HZ |
| Detection range | 1800m |
| Objective lens | 35mm/F1.0 |
| Field of view | 7.5°x5.6° |
| / m @100m | 13.2mx9.9m |
| Magnification | 3.3x |
| Digital zoom | 1-4x continuous zoom |
| Eye relief | 40mm |
| Exit pupil | 6mm |
| Diopter | ±5D |
| Type | AMOLED |
| Display Resolution | 1024×768 |
| Display size | 0.39in |
| Color palette | 6 |
| Image mode | Forest/Target/Outline |
| Photo/video playback | Yes |
| Language | Multiple-languages |
| Inbuilt Memory | 64GB |
| Calibration | Auto/Manual |
| PIP | Yes |
| AI Distance Measurement | Yes |
| Heat Track | Yes |
| Real-time Notification | Yes |
| OSD Recording | Yes |
| Internal battery | Internal High Capacity Li-ion Battery (18650×2) |
| Battery life | 16h |
| Type-C | Supports battery charging,data transfer |
| Hotspot | App remote control |
| Working temperature | -20℃~+50℃ |
| Protection Level | IP67 |
| Weight, g | 522 |
| Dimension mm | 196.4*63.8*64.1 |
| External Cable | USB Cable |
| Other Accessories | Non-dust cloth and etc. |
