| Type | Uncooled |
| Resolution | 640x512 |
| Pixel pitch | 12µm |
| NETD | ≤ 20mK |
| Spectral range | 8-14µm |
| Frame rate | 50HZ |
| Detection range | 1000/3000m |
| Objective lens | 20/60mm, F1.0 |
| Field of view | 21.7°x17.4°/ 7.3°x5.9° |
| m@100m | 38.4x30.7/12.8x10.2 |
| Magnification | 1.1X/3.2X |
| Digital zoom | 1.0-4.0X smooth & rapid zoom |
| Eye relief | 50mm |
| Exit pupil | 6mm |
| Diopter | ±5D |
| Reticle | 7 |
| Reticle color | 5, Black, white, red, green, blue |
| Display Type | AMOLED |
| Display Resolution | 1024x768 |
| Display size | 0.39 inch |
| Color palette | 6 |
| Max. recoil power on rifled weapon | 6000J |
| Mounting brackets on weapon | Standard 30mm rings |
| RAV | Yes |
| Audio Recording | Yes |
| Auto zeroing | Yes |
| Manual zeroing | Yes |
| Zeroing profiles | 5 |
| Freeze Zeroing | Yes |
| Picture-in-picture | Yes |
| Laser ranging | 1.8mrad@1000m |
| Ballistic Calculator | Yes |
| Image calibration | Manual/Auto |
| Phone/video playback | Yes |
| Inbuilt memory | 64GB |
| Type C | Data transfer |
| Hotspot | Yes |
| Battery type | Replaceable,1*18650 or 18500 battery,1*18650 inbuilt battery |
| Battery reverse connection | Yes |
| Battery life | 16h |
| Operating temperature | -20-+50°C |
| Protection Level | IP67 |
| Weight, g | 1117 |
| Size, mm | 435.7*103.9*92.9 |
| External Cable | USB data cable |
| Other Accessories | 2x standard 30mm rings, eyeshade and etc. |

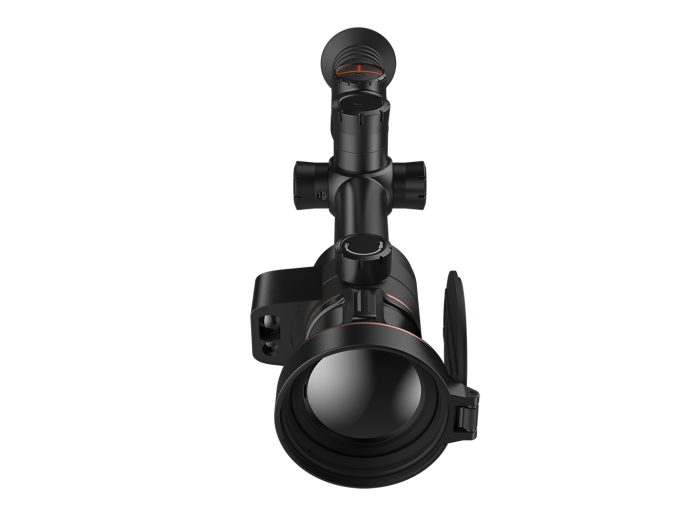

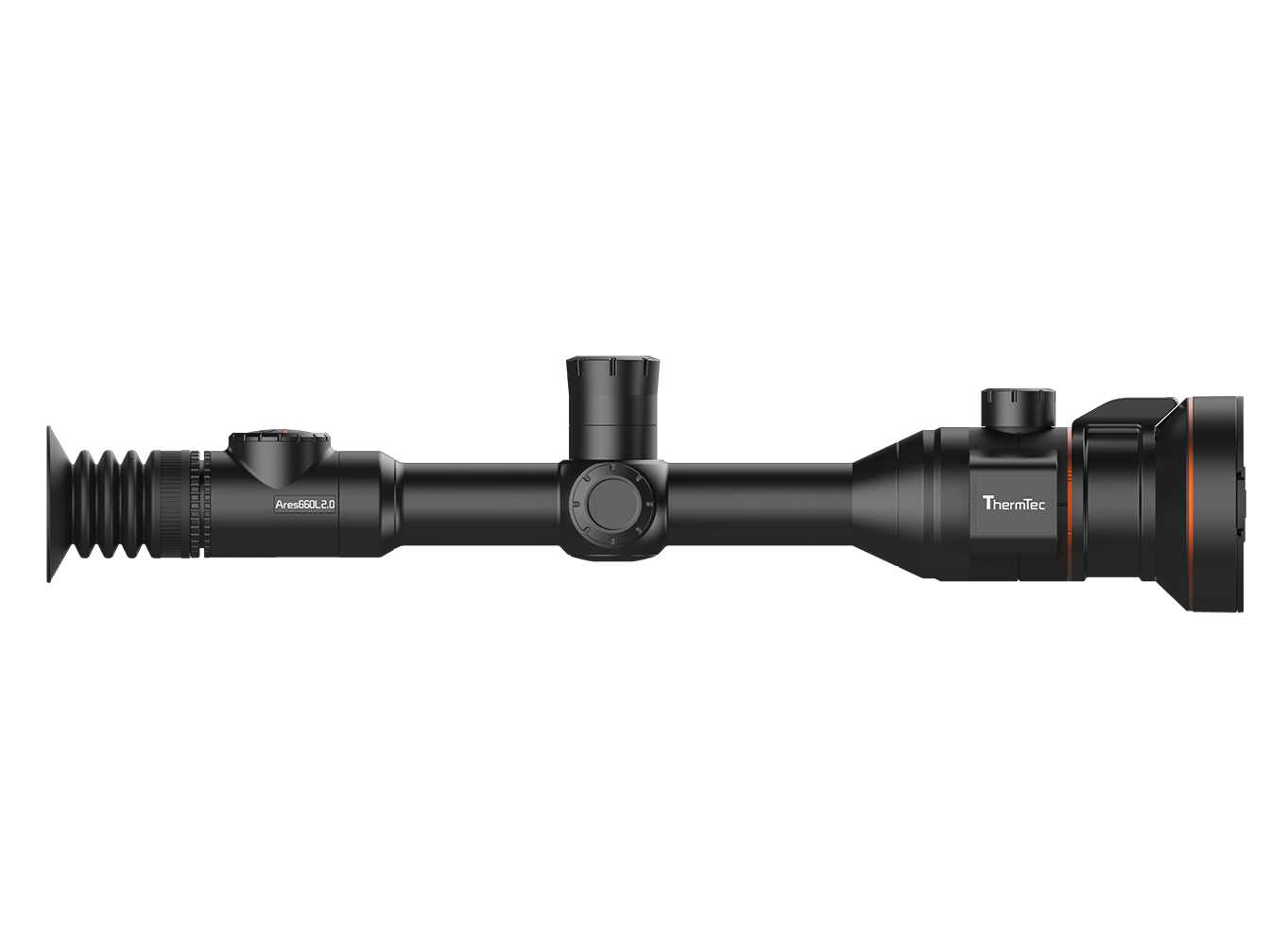

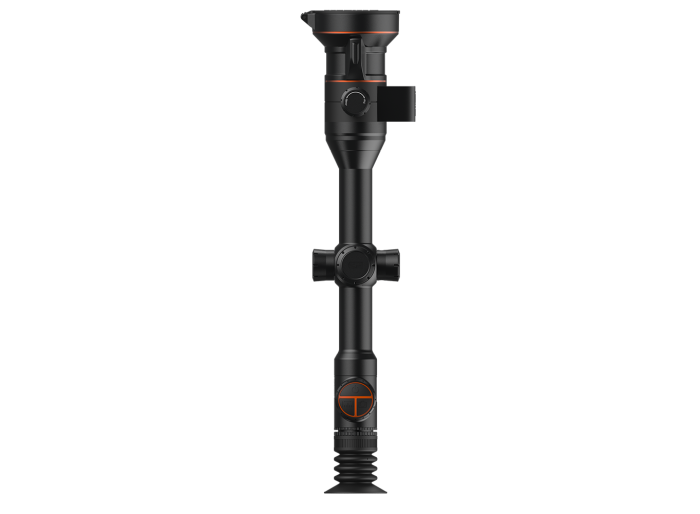

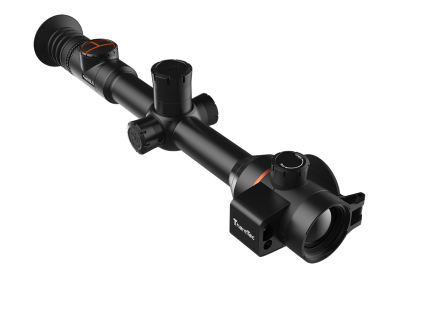

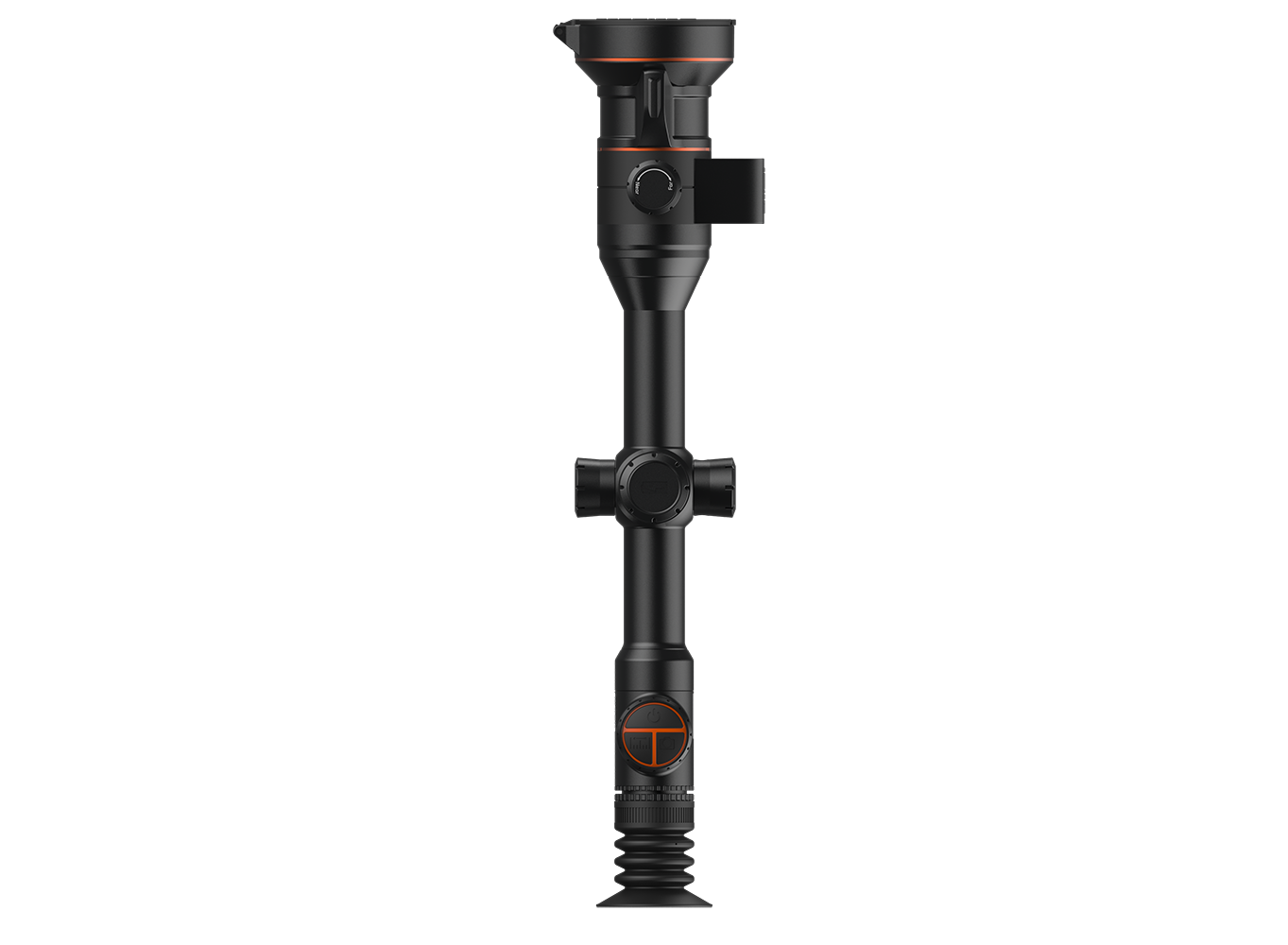

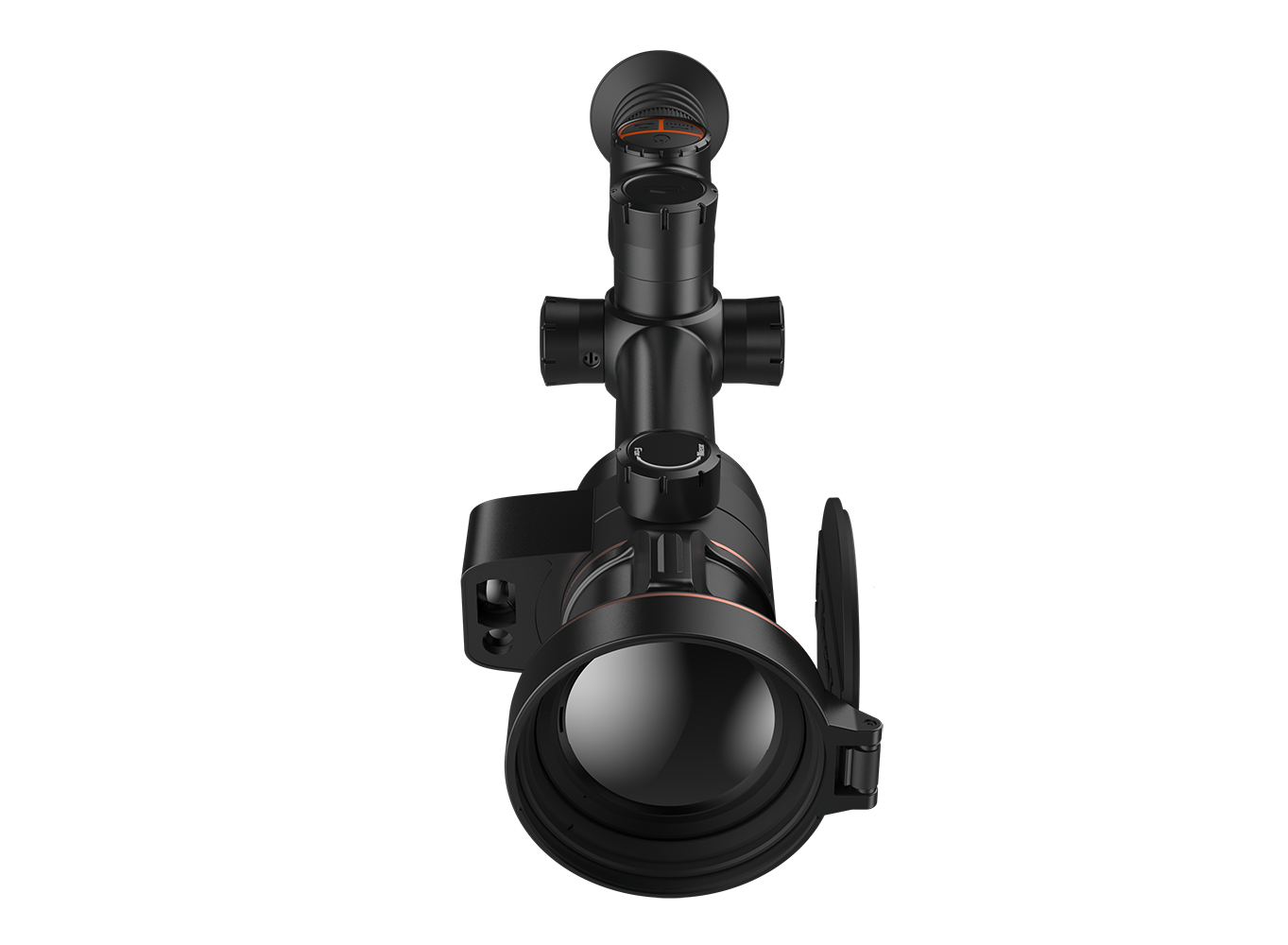

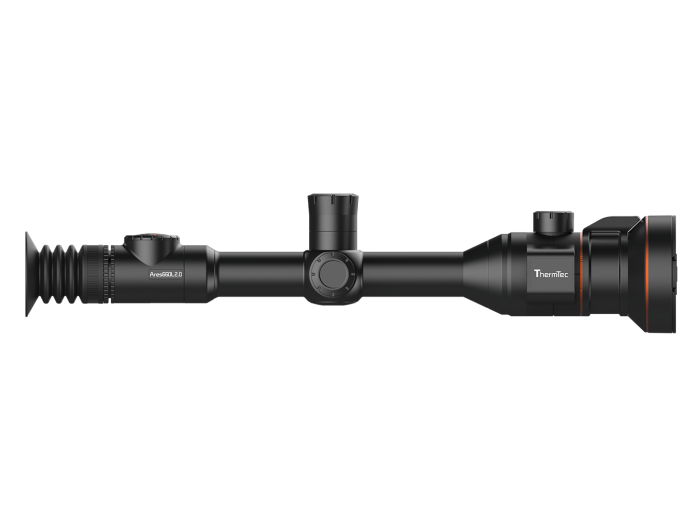

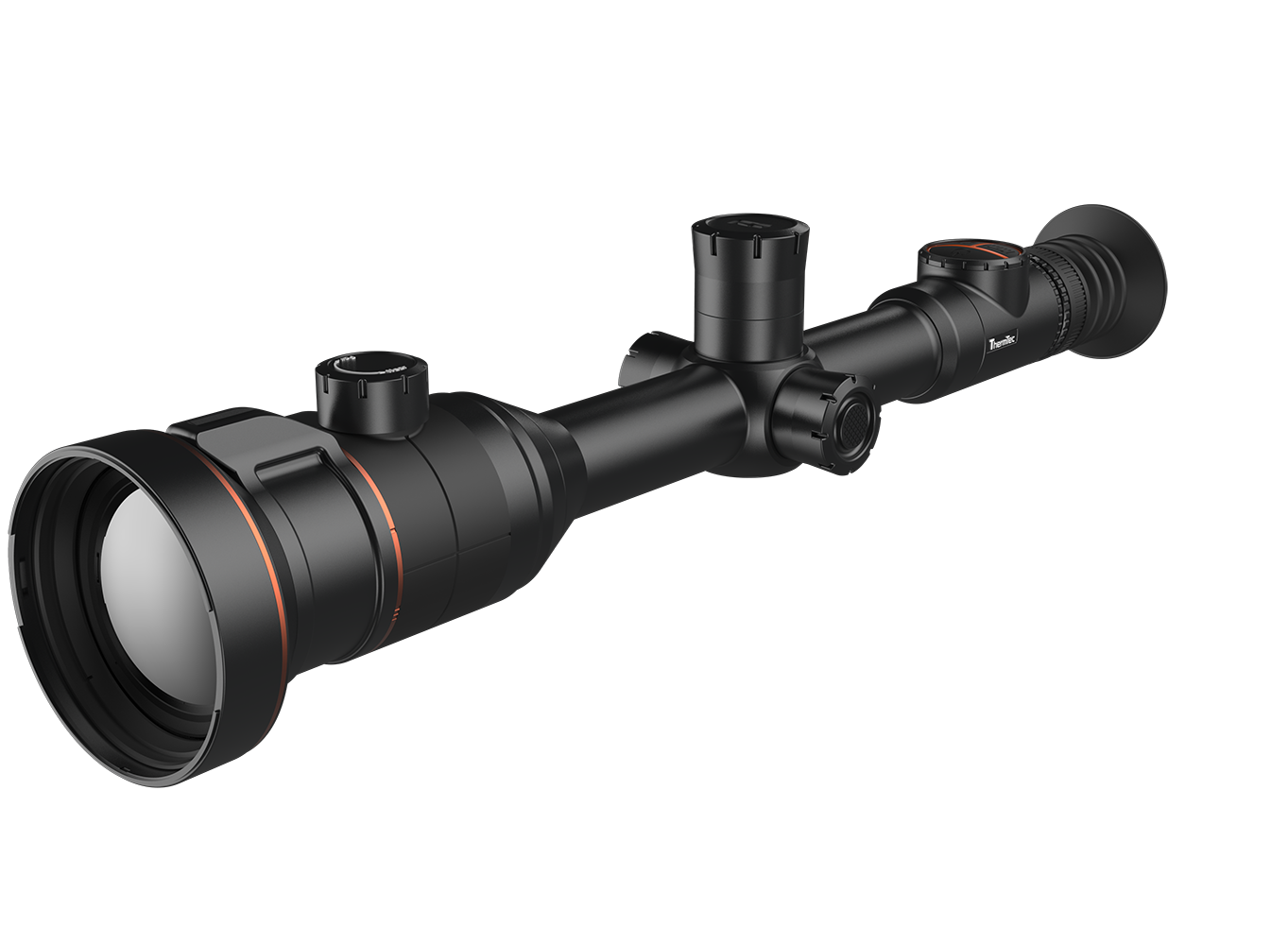

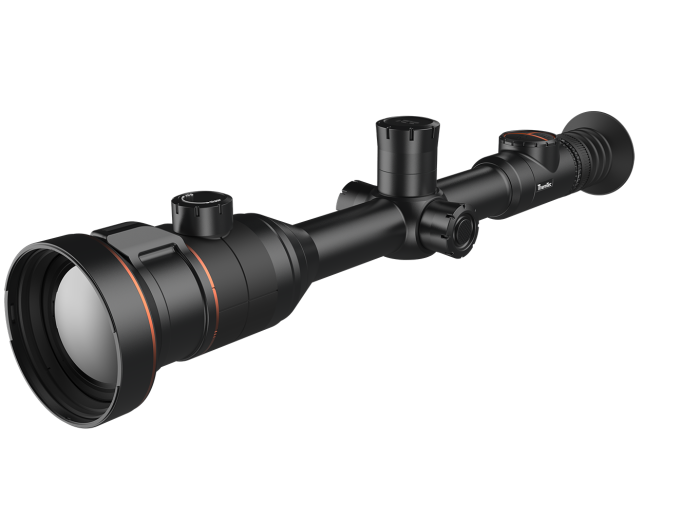

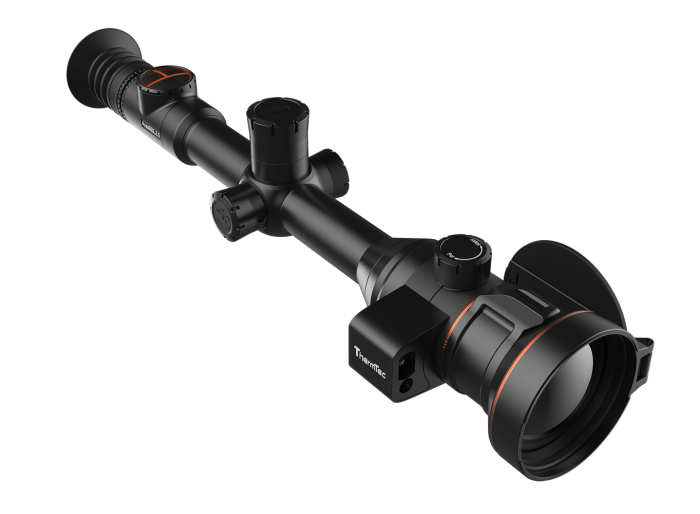

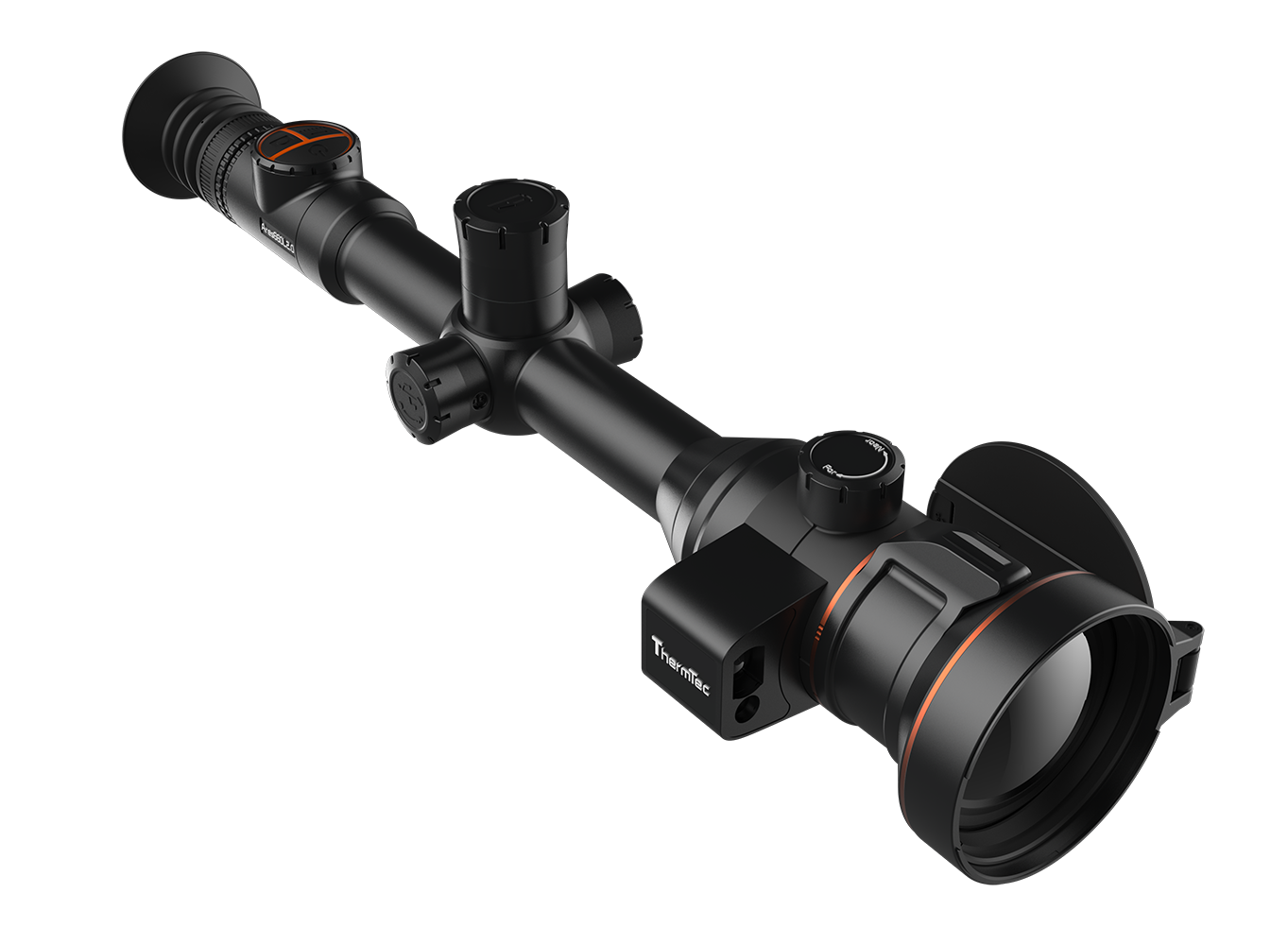

Ares 660L 2.0 Thermal lmaging Scope
£3,699.00
( Include 20% TAX )
Ares 660L 2.0 is designed for hunters who pursue precision shooting and hunting in different environments. It features an integrated 1000m laser rangefinder and ballistic calculation, significantly enhancing long-range shooting accuracy. With a powerful 640×512 resolution and NETD ≤20mK sensor, along with a dual field of view lens (20mm/60mm), it offers 3x optical zoom and 4x digital zoom, enabling the detection and observation of details across various distances. Incorporating the latest technology and optimizing user experience, ARES660L 2.0 is the ideal compact thermal imaging scope for precise and efficient hunting.
●640*512 thermal resolution, NETD≤20mK;
●20/60mm Lens, Dual Field of View;
●5 colors and 7 reticle choices for reticle options;
●Freeze and zoom of zeroing improve shooting accuracy.;
●Built-in laser rangefinder, accurately measure the distance up to 1,000m;
●Self-learning image calibration;
●Ultra-long battery life reaches to 16hrs;
●5 zeroing profiles meet various needs;
●RAV function allows recording every terrific shot;
●Rotary knob design;
●Support video recording and snapshot, built-in memory chip up to 64GB;
• Ares 660L 2.0 Thermal lmaging Scope (x1)
• 18650 battery cap (x1)
• USB cable (x1)
• Eyeshade (x1)
• 18500 battery cap (x1)
• 30mm tube clip (x2)
• Lithium battery (x2)
• Charger(X1)
• Lens cloth (x1)
