| Resolution | 384x288 |
| Pixel pitch | 12µm |
| NETD | 20mK@300k |
| Spectral range | 8-14µm |
| Frame rate | 50HZ |
| Detection range | 750m |
| Objective lens | 15mm/F1.0 |
| Field of view | 17.5° x 13.1 ° |
| / m @100m | 30.7m x 23.0m |
| Magnification | 1.4x |
| Digital zoom | 1x,2x,4x |
| Eye relief | 20mm |
| Exit pupil | 6mm |
| Diopter | ±5D |
| Type | AMOLED |
| Display Resolution | 1024x768 |
| Display size | 0.39 inch |
| Color palette | 6 |
| Image mode | Forest/Target/Outline |
| Photo/video playback | Yes |
| Language | Multiple-languages |
| Inbuilt Memory | 32GB |
| Audio | Yes |
| Calibration | Auto/Manual |
| PIP | Yes |
| AI Distance Measurement | Yes |
| Heat Track | Yes |
| OSD Recording | Yes |
| Internal battery | Replaceable and Rechargeable Li-ion Battery (18650x1) |
| Battery life | 10h |
| Type-C | Supports battery charging, data transfer |
| Hotspot | Yes, App remote control |
| Working temperature | -20℃~+50℃ |
| Protection Level | IP67 |
| Weight, g | 255(w/o battery) |
| Dimension mm | 139*76*54 |
| External Cable | USB cable |
| Other Accessories | Non-dust cloth and etc. |

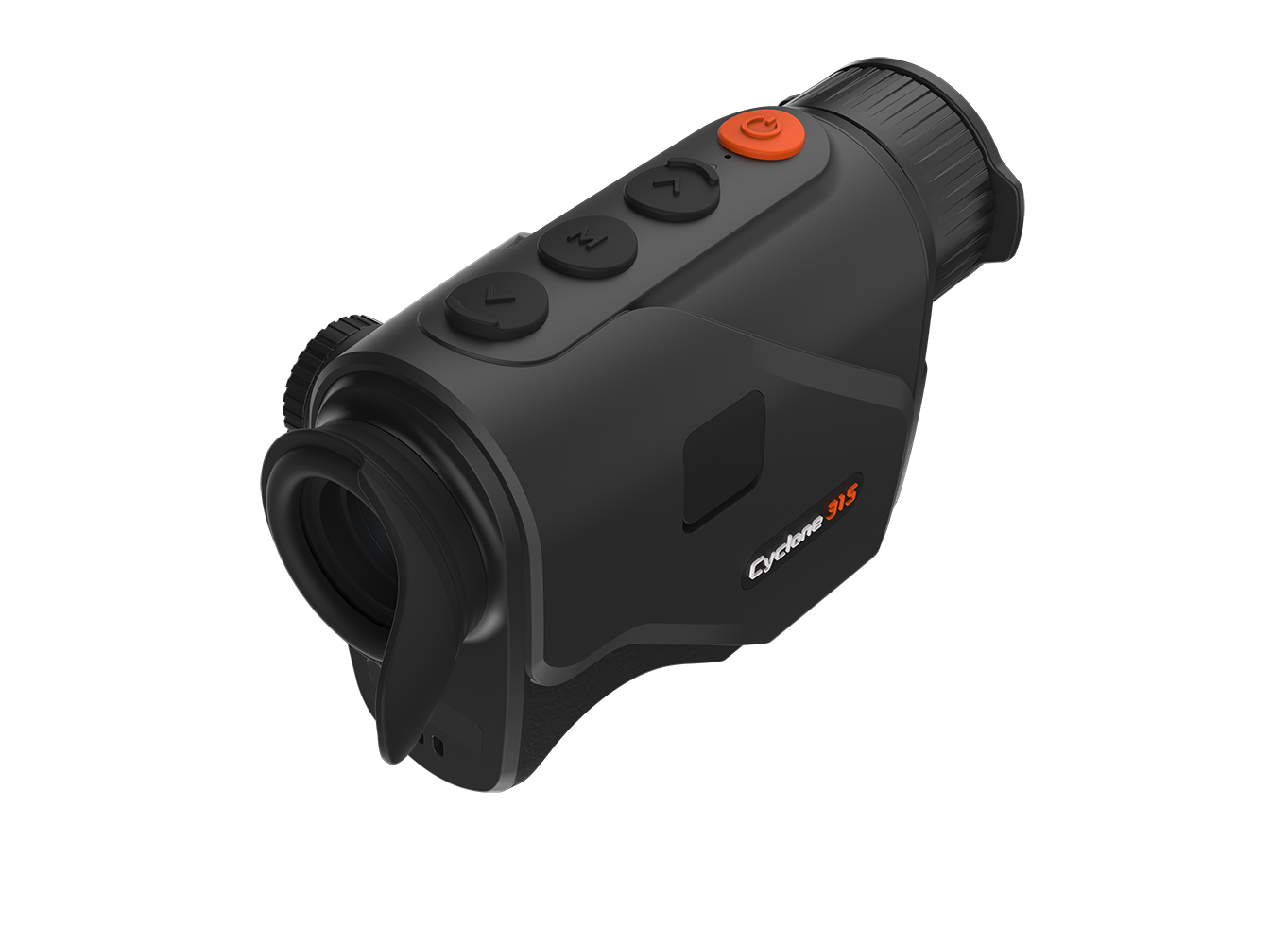

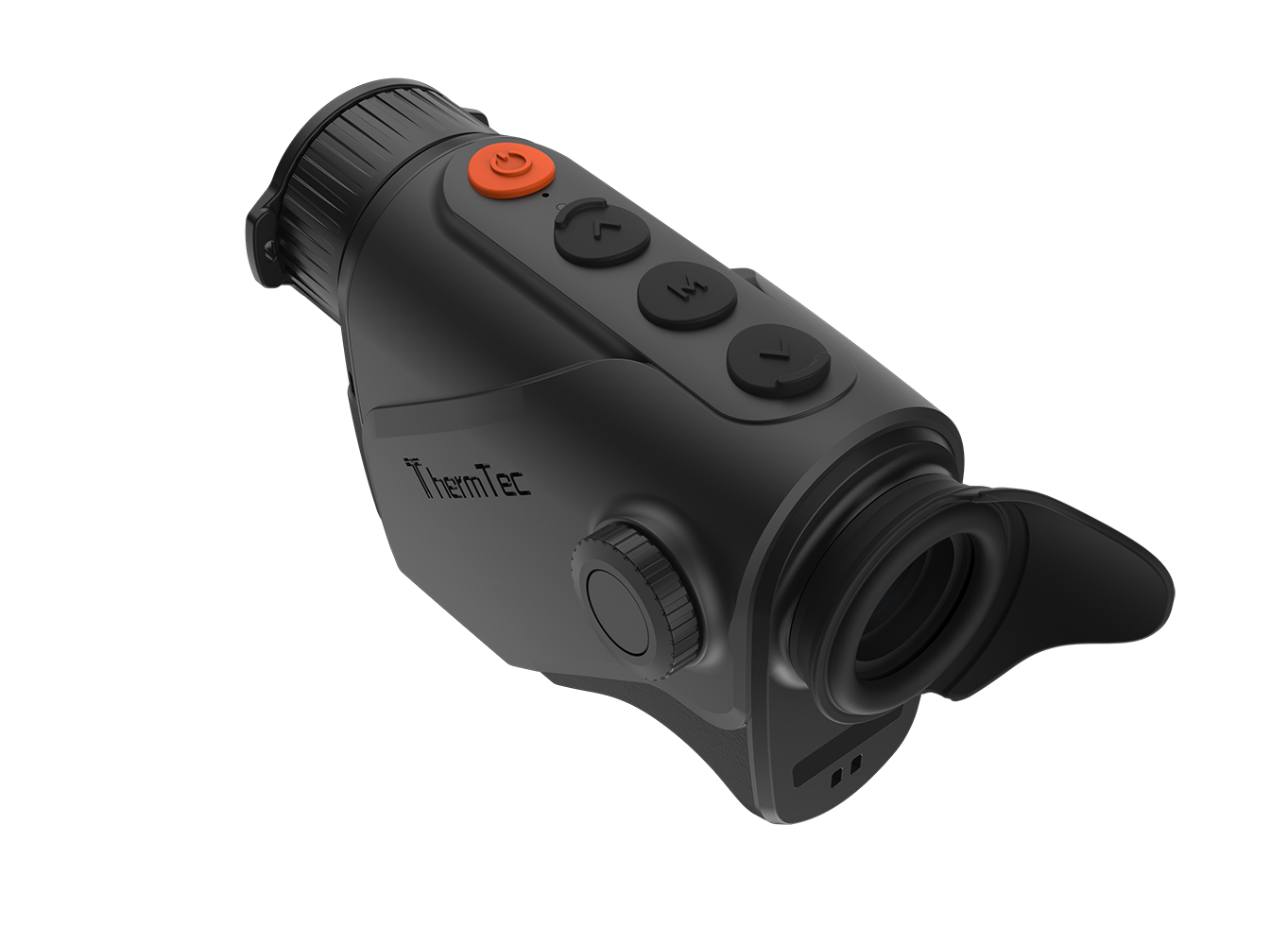

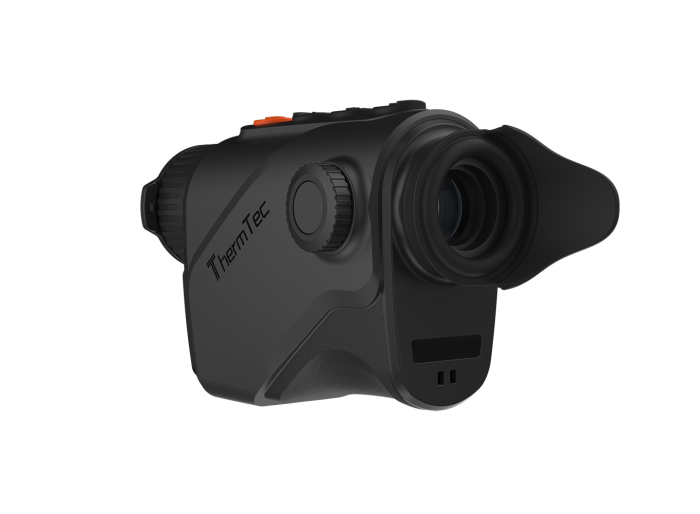

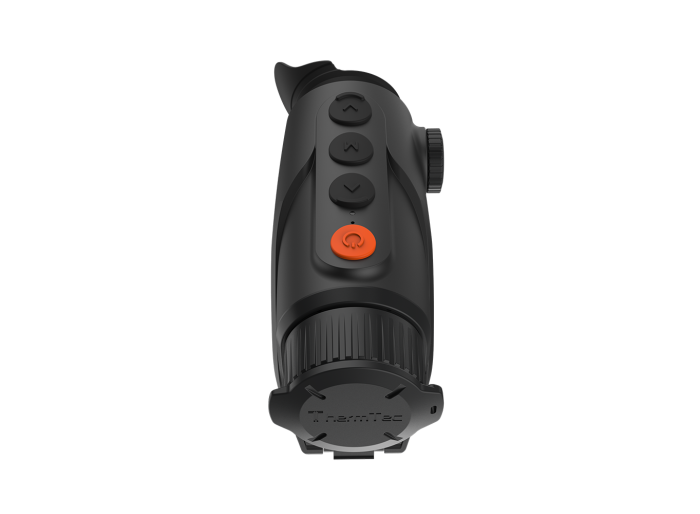

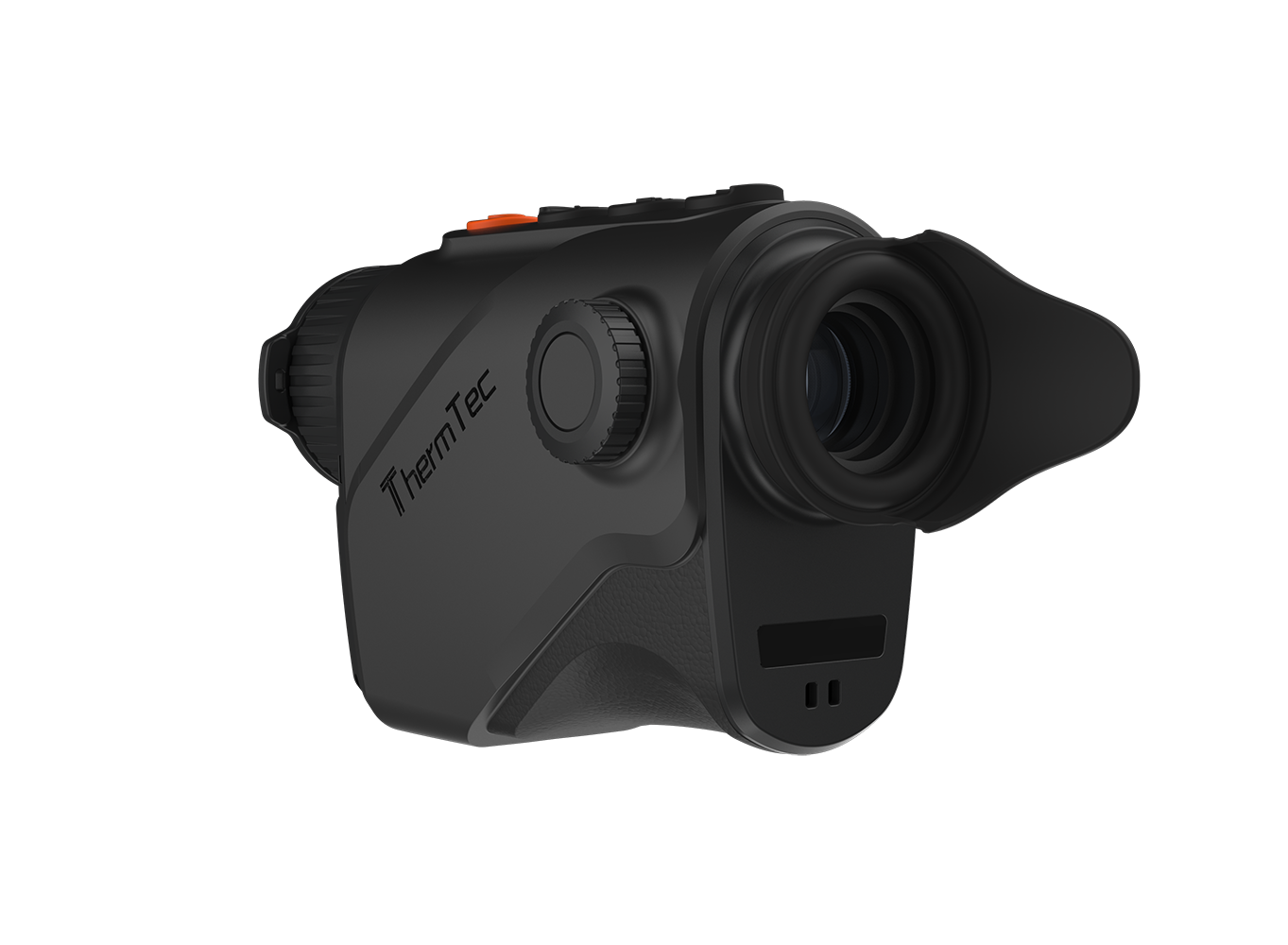

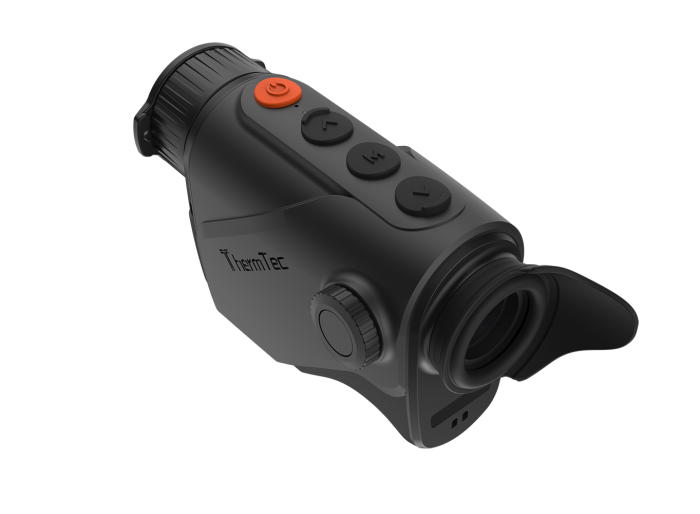

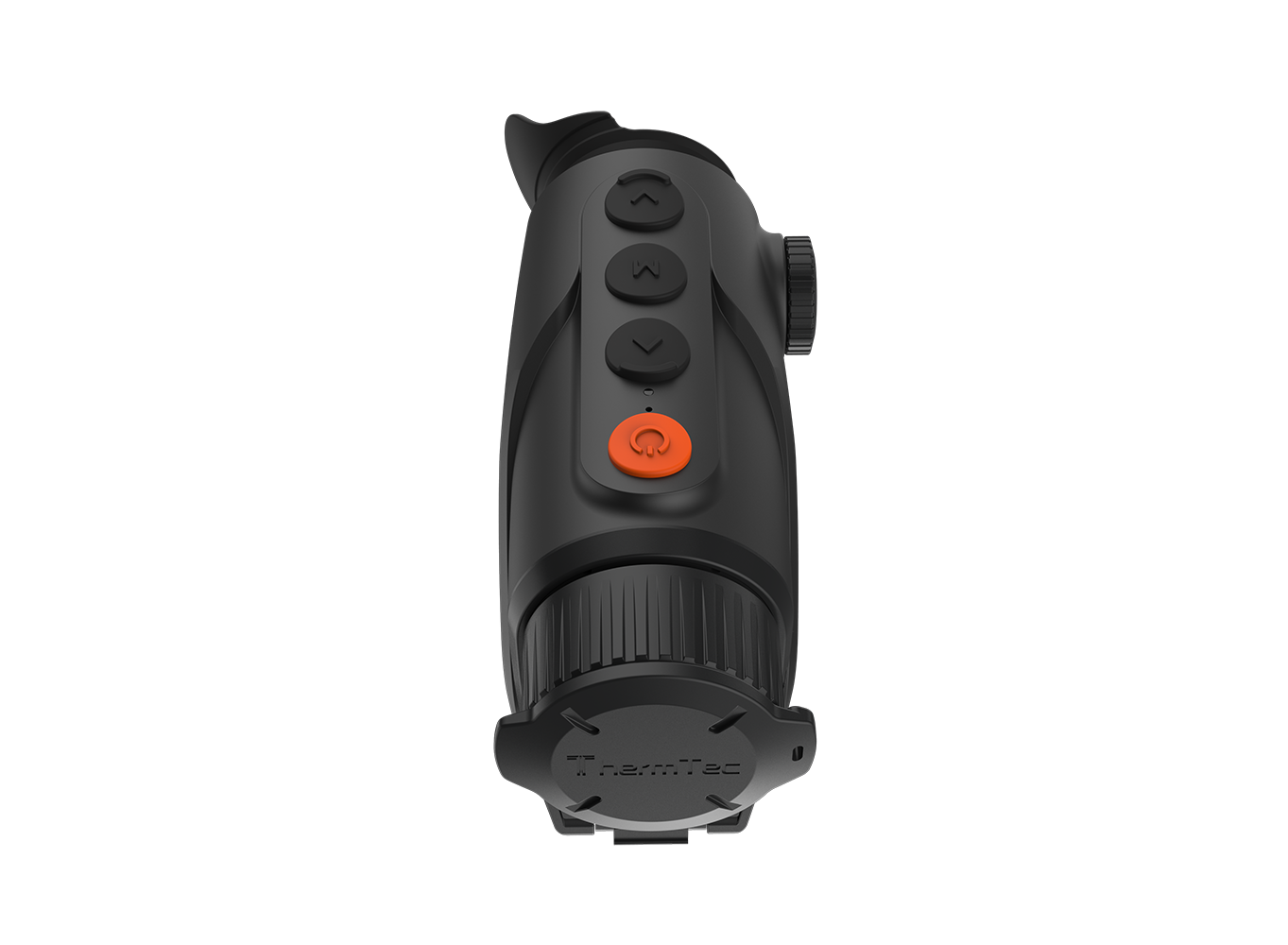

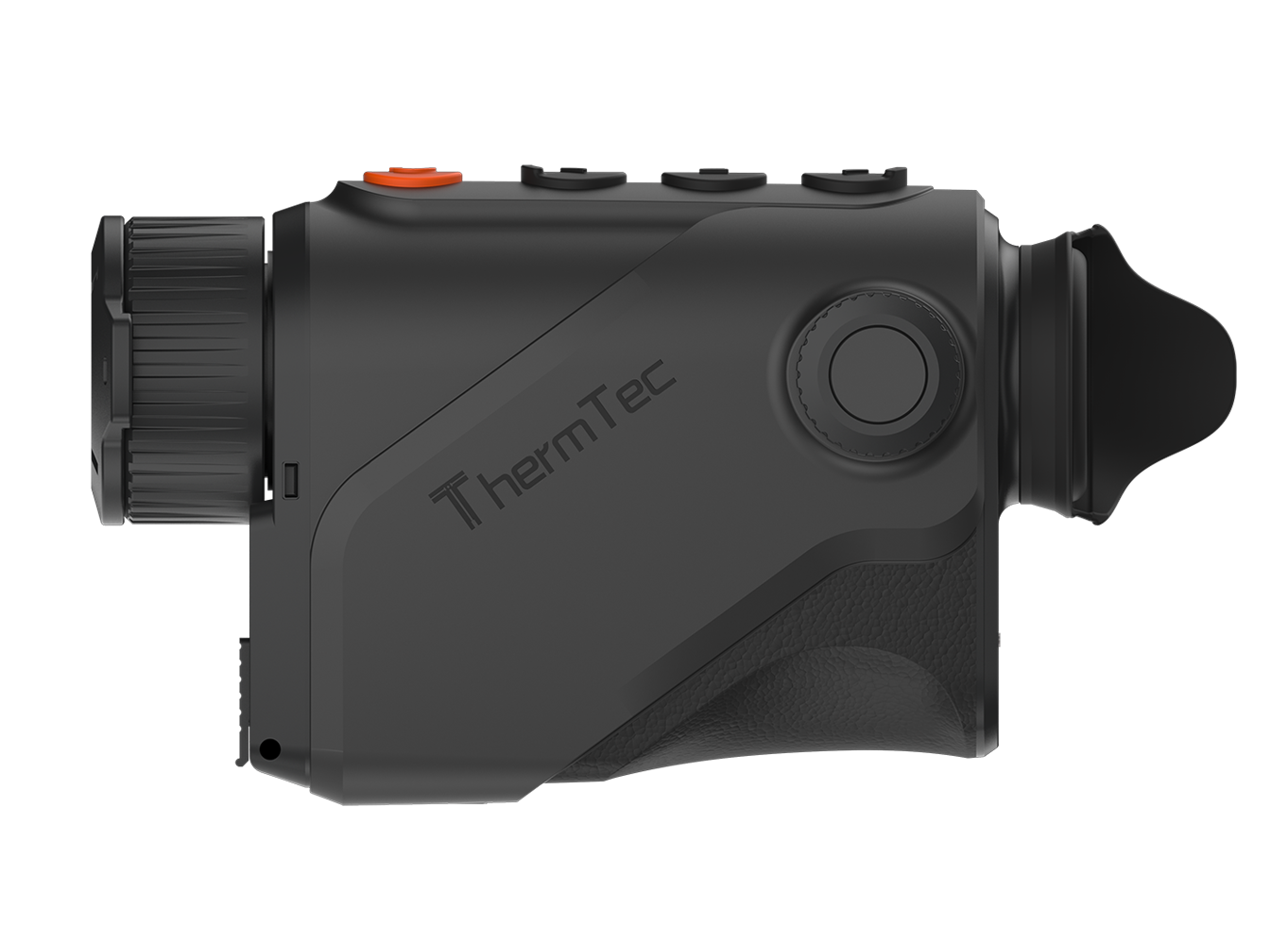

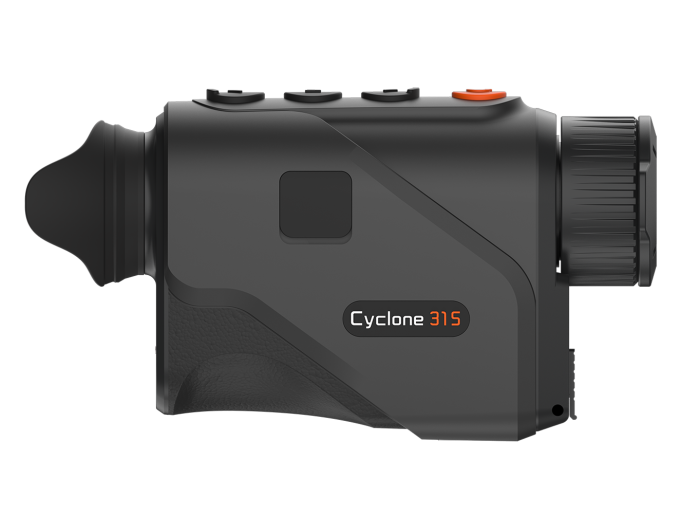

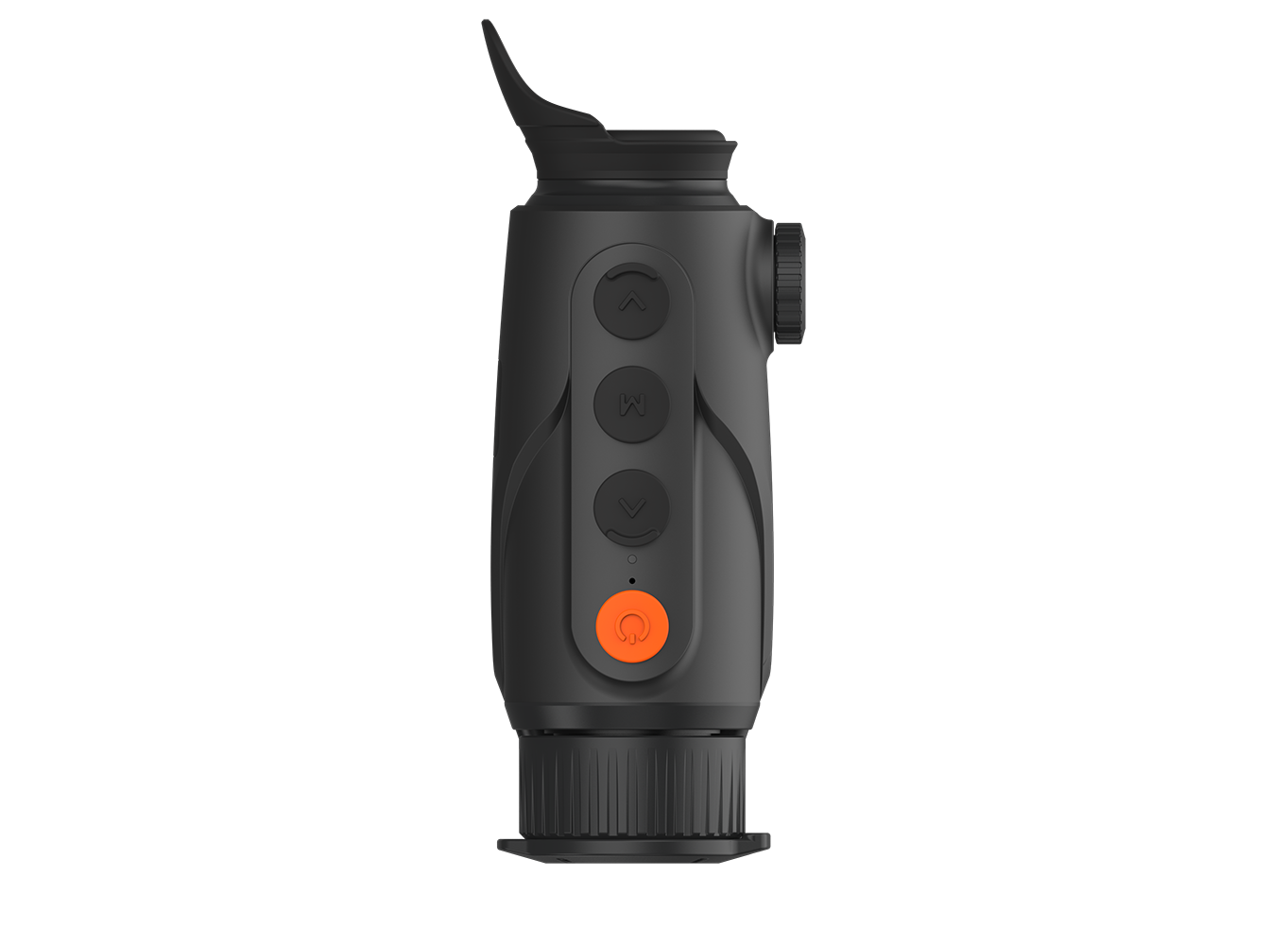

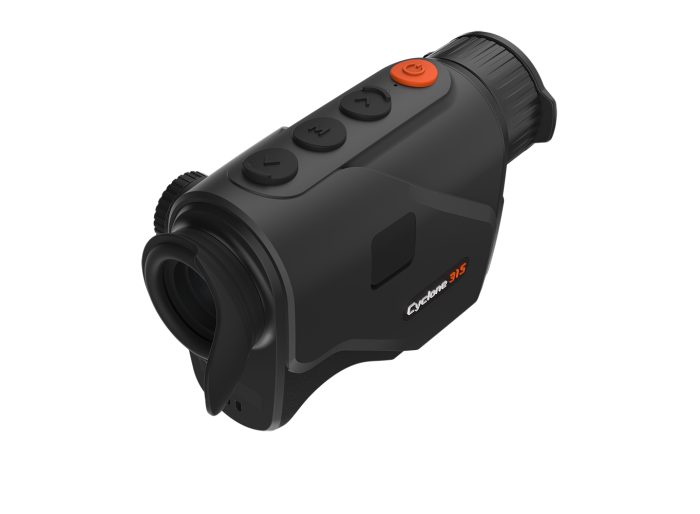

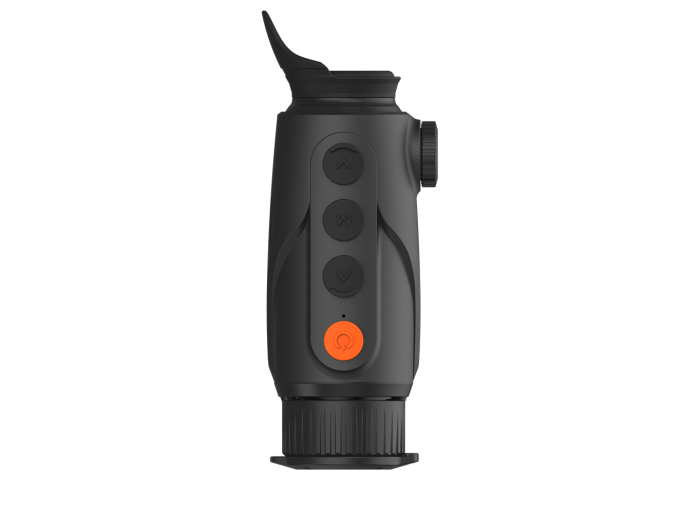

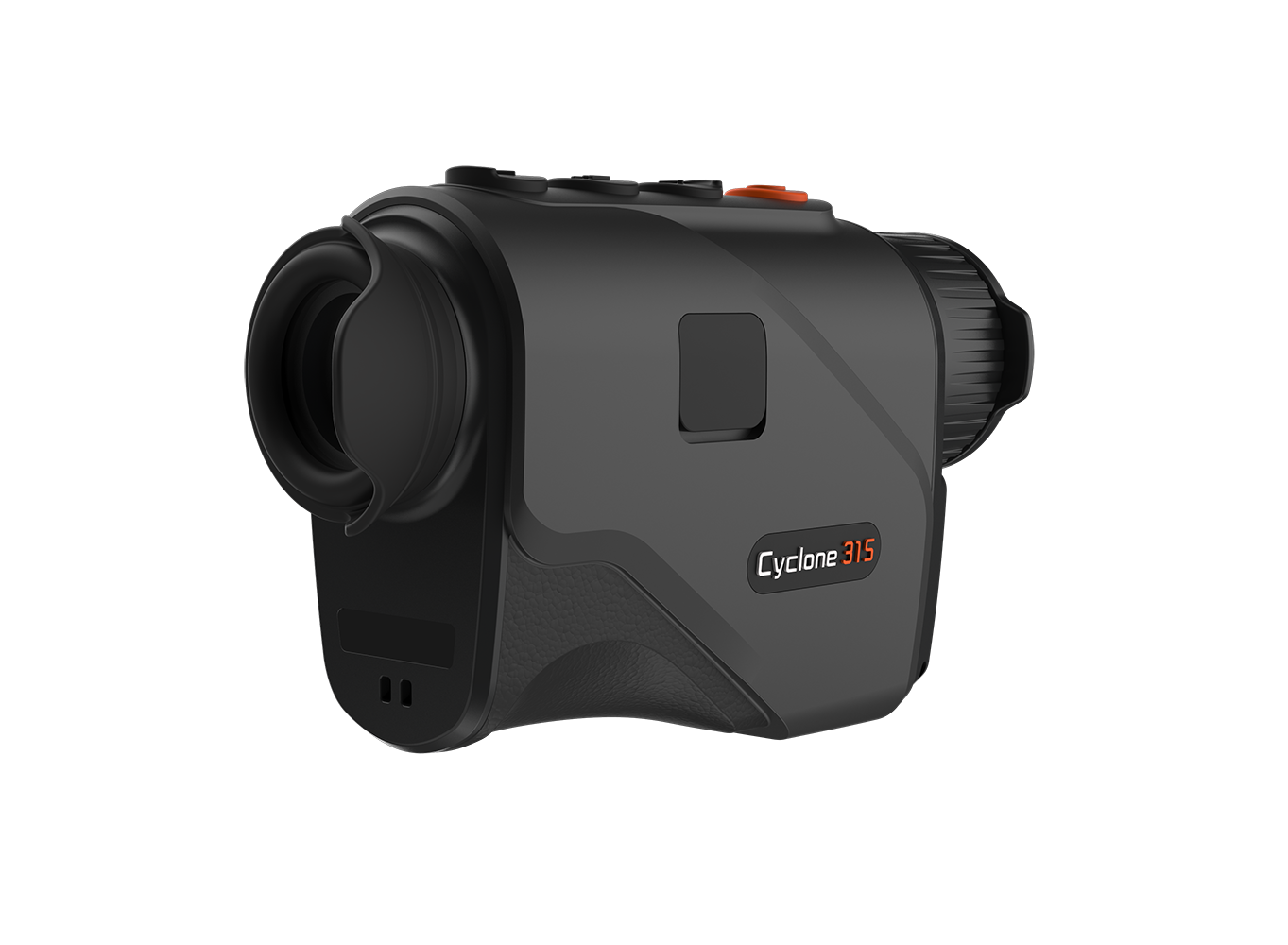

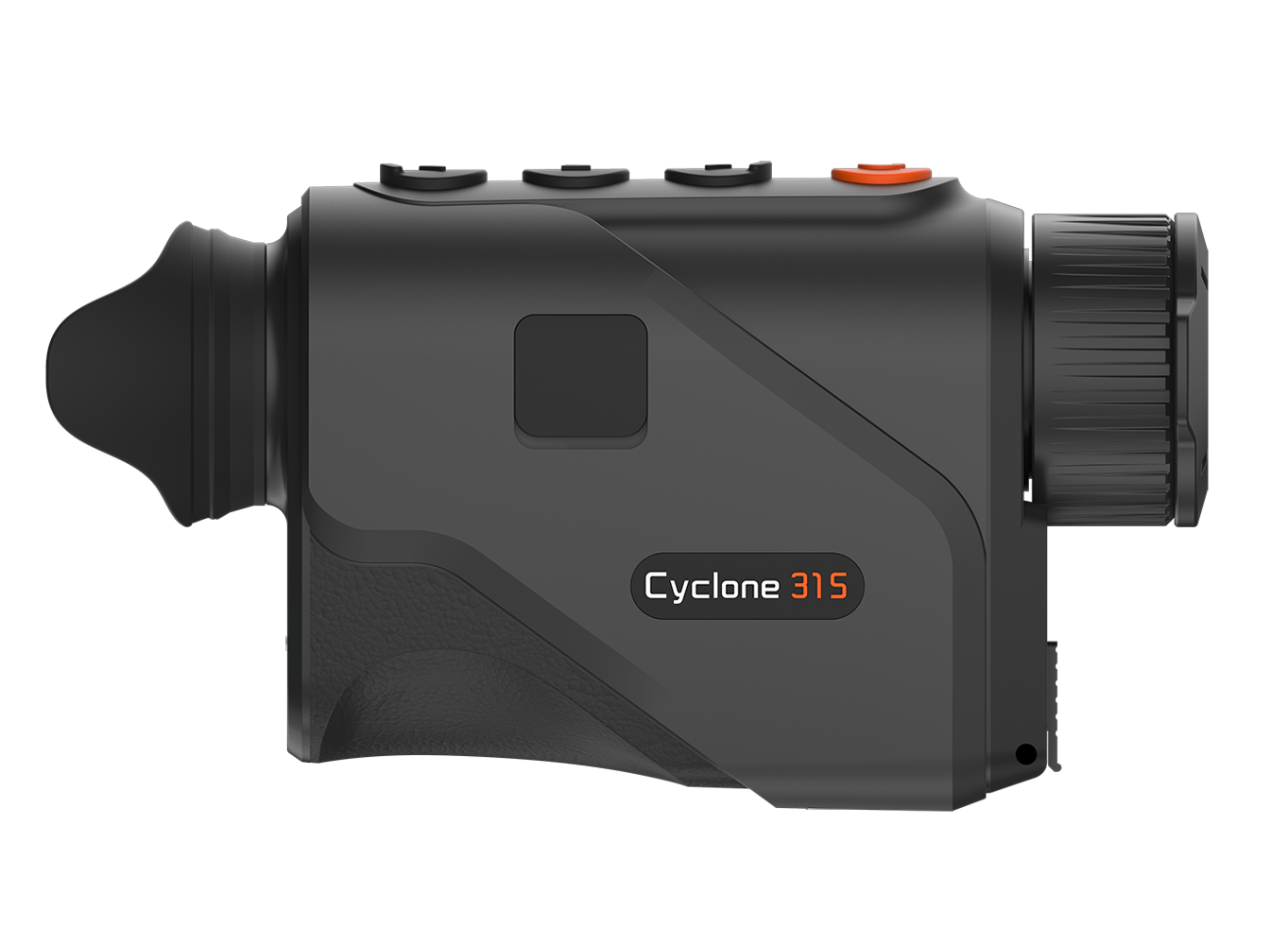

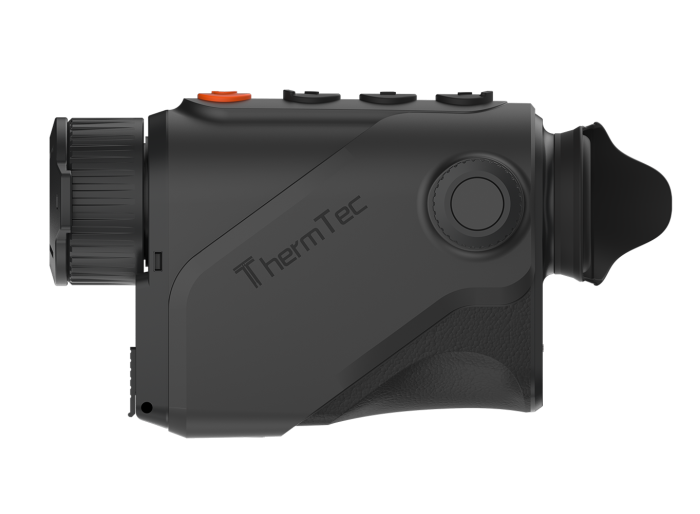

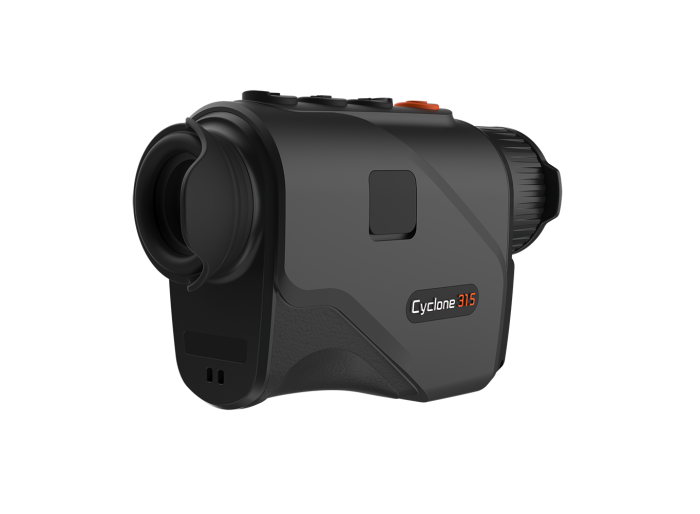

Cyclone 315 Thermal lmaging Monocular
£798.99
( Include 20% TAX )
ThermTec Cyclone 315 is most compact and lightweight thermal imaging monocular on the market, weighing only 255g. Features a NETD <20mK detector that delivers excellent image quality. AI self-learning algorithms that provide increasingly stable target image quality. With advanced features such as multi-target ranging, 20-hour battery life, and 3-second fast startup, it is a great choice for close-range observations at an affordable price.
● 384*288 thermal resolution, NETD less than 20mK
● Excellent handheld ergonomic design for a perfect operating experience
● Silent button with no noise
● Various colour palettes for customizable use
● Advanced AI algorithm suitable for diverse distance measurements simultaneously
● Incomparably simple UI interface
● Up to 32GB storage capacity
● 1024*768 resolution with a 0.39-inch OLED display
● Three types of digital zoom available
● Fast boot within 3 seconds
● Replaceable lithium batteries provide up to 10 hours of continuous work
● A variety of imaging modes including forest, target, and outline
• Cyclone 315 Thermal lmaging Monocular (x1)
• USB cable (x1)
• Charger (X1)
• Lens cloth (x1)
• User manual (x1)
• Lithium battery (X2)
