| Thermal Module Resolution | 640×512 |
| Pixel pitch | 12μm |
| NETD | ＜15mK@300K |
| Spectral range | 8-14μm |
| Objective lens | 35mm/F0.9 |
| Field of View/m@100m | 12.5°×10° / 21.9×17.6 |
| Frame rate | 50Hz |
| Magnification | 2.6X-10.4X(4X) |
| Detection range | 1800m |
| Objective lens | 3536x3536，2μm |
| Field of view/m@100m | 8.1°×8.1° / 14.14×14.14 |
| Objective lens | 50mm/F1.4 |
| IR illuminator wavelength | 850nm/940nm switchable |
| Viewing range at night | 850nm: 400m/940nm:350m |
| Magnification | 4X-16X(4X) |
| Type | AMOLED |
| Image Display Resolution | 1600×1200 |
| Display size | 0.5 inch |
| Color palette | 6 |
| EIS | Yes |
| Eye relief | 20mm |
| Exit pupil | 8mm |
| Diopter | ±5D |
| Interpupillary adjustment range | 60 mm to 72 mm |
| Image mode | Forest/Rainy |
| TSR algorithm | Yes |
| Safety class | Class 1 |
| Wavelength | 905nm |
| Range | 1000m |
| Accuracy | ±1m |
| Photo/Video playback | Yes |
| Audio recording | Yes |
| Azimuth | Yes |
| Digital magnetic compass | Yes |
| Hotspot | Yes |
| Language | Multiple-language |
| Storage | 64GB EMMC |
| PIP | Yes |
| Heat track | Yes |
| Local album | Yes |
| OSD recording | Yes |
| Burn prevention | Yes |
| Internal battery | Replaceable Li-ion battery (18650*2) |
| Type-C power supply | Data transfer |
| Battery life | 6h |
| Working temperature | -20℃-+50℃ |
| Protection level | IP67 |
| Weight, g | 825 |
| Size, mm | 164(L)x127.6(W)x73(H) |
| Mounting adapter | 1/4-20-UNC |

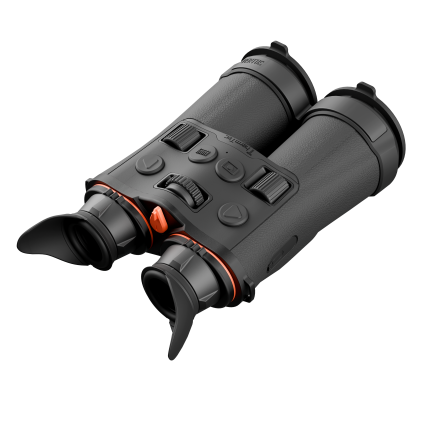

Ventus 635L Multi-Spectrum Binocular
£2,599.00
( Include 20% TAX )
The Ventus 635L combines a high sensitivity thermal sensor with NETD <15 mK and a 12 megapixel CMOS sensor, supported by switchable 850 nm and 940 nm IR illumination, to deliver clear and consistent imaging across day and night. ThermTec AI Calibration enhances image stability and clarity for smooth viewing in changing environments. Its balanced magnification and up to 1800 m detection range enable efficient scanning, while seamless mode switching and ergonomic control ensure stable, comfortable observation during extended use.
- 5-in-1 integrated vision system
- Switch from infrared to daylight mode without the need of re-focusing
- 640×512 thermal resolution with NETD＜15mK
- Switchable 850nm and 940nm IR for optimized night vision
- EIS-enhanced CMOS imaging stability under high magnification
- ThermTec AI Calibration for consistently stable and clear images
- Thermal Super Resolution technology for ultra-detailed thermal images
- Ergonomic design for dual focus wheel control with one hand
- Anti-slip, rubber-coated frame with widely adjustable eyepieces
- A proximity sensor enables automatic screen-off for energy savings
- Two replaceable batteries provide 6-hour durability
- Integrated LRF precision up to 1000m
- Long detection range up to 1800m
- Service & Support all-in-one App
- 4K UHD resolution of 3536×3536 on a 1600×1200 0.5″ AMOLED display
• Ventus 635L Multi-Spectrum Binocular (x1)
• Lens cloth (x1)
• User manual (X1)
• 18650 battery(x2)
• USB cable (x1)
• Charger (X1)
• Service and support card(x1)
• Bag(x1)
