Thermal lmaging Sight
ARES 2.0 Series
Ultra Image Quality
With advanced NETD ≤ 18mK sensor, it excels at detecting hidden targets and precisely capturing even the slightest temperature variations. Observe every intricate detail, from the contours of animals to crucial joints, unraveling a world of unseen insights.
AI Calibration Enhanced Image Stability
Ares 2.0’s advanced AI technology and self-learning capabilities ensure that image quality remains stable regardless of environmental changes. With each use, it gathers environmental data and applies sophisticated algorithms to maintain image stability for your next task. The more you use it, the better it gets!
Tripled Battery Life Extension
Immerse yourself in the realm of supreme endurance with Ares 2.0! The combination of a built-in battery and a rechargeable battery grants you an astounding 18 hours of uninterrupted operation, ensuring that you never miss a single moment.
Rapid 3s Startup
When your target comes into view, simply power up the Ares 2.0 in 3 seconds, it enables quick and precise aiming. Set your preferred auto-shutdown time and benefit from its energy-efficient design, which extends battery life.
Weight Barrier Shattered
The sleek and tubular design eliminates unnecessary bulk. With a remarkable 10% weight reduction, it becomes your effortless companion on any journey. Embrace the freedom of mobility without compromising on performance.
Conquer the Farthest Targets
Once your target is locked, maximizing accuracy is essential. With our latest app, ThermTec Outdoor, to adjust your settings and benefit from point of aim recommendations for overcoming bullet drop and enhancing your long-range shooting accuracy.
Compact Laser Rangefinder
Capture the perfect shot by accurately measuring the target distance with our upgraded 1000m compact laser rangefinder. Now half the size of the previous model, it integrates seamlessly with the body for quick and precise measurements with an accuracy of ±1 meter at 100 meters.
Seamless FOV Control
Experience smooth and effortless view switching with the upgraded field-of-view switch. The newly raised lever adds convenience, enabling one-handed operation without compromising the stability of the device.
Silent Lens Cover
Silent precision at its finest! The new silent lens cover with adjustable positioning fits perfectly against the body at its maximum angle, eliminating issues with rebound, noise, breakage, and obstructed view.
More Advantage
0.39-inch AMOLED Display
IP67 Waterproof Rated
Picture-in-Picture Function
6 Color Palettes
5 Zeroing Profiles
-20℃—+50℃ Operating Temperature
64GB Inbuilt Memory
Long Detection Range
Specifications
Ares 660L 2.0
Ares 650L 2.0
Ares 360L 2.0
Ares 335L 2.0
Ares 660 2.0
Ares 650 2.0
Ares 360 2.0
Ares 335 2.0

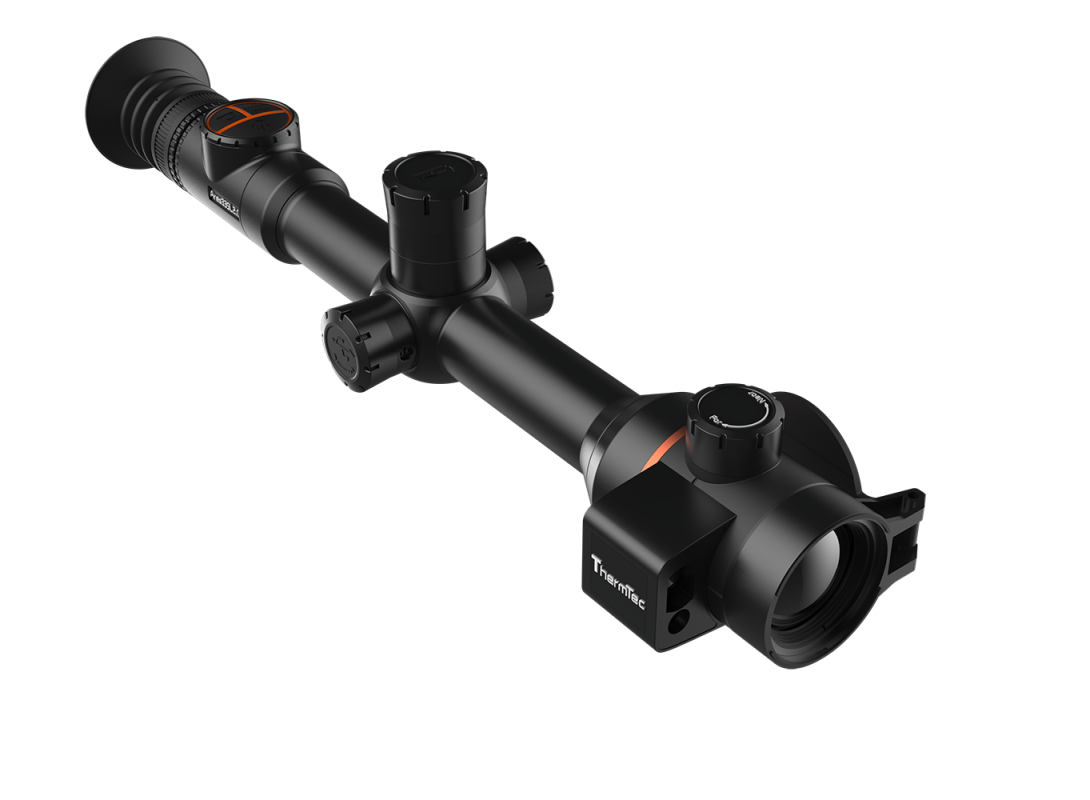

Ares 660L 2.0
| Type | Uncooled |
| Resolution | 640×512 |
| Pixel pitch | 12µm |
| NETD | ≤ 20mK |
| Spectral range | 8-14µm |
| Frame rate | 50HZ |
| Detection range | 1000/3000m |
| Objective lens | 20/60mm, F1.0 |
| Field of view | 21.7°x17.4°/ 7.3°x5.9° |
| m@100m | 38.4×30.7/12.8×10.2 |
| Magnification | 1.1X/3.2X |
| Digital zoom | 1.0-4.0X smooth & rapid zoom |
| Eye relief | 50mm |
| Exit pupil | 6mm |
| Diopter | ±5D |
| Reticle | 7 |
| Reticle color | 5, Black, white, red, green, blue |
| Display Type | AMOLED |
| Display Resolution | 1024×768 |
| Display size | 0.39 inch |
| Color palette | 6 |
| Max. recoil power on rifled weapon | 6000J |
| Mounting brackets on weapon | Standard 30mm rings |
| RAV | Yes |
| Audio Recording | Yes |
| Auto zeroing | Yes |
| Manual zeroing | Yes |
| Zeroing profiles | 5 |
| Freeze Zeroing | Yes |
| Picture-in-picture | Yes |
| Laser ranging | 1.8mrad@1000m |
| Ballistic Calculator | Yes |
| Image calibration | Manual/Auto |
| Phone/video playback | Yes |
| Inbuilt memory | 64GB |
| Type C | Data transfer |
| Hotspot | Yes |
| Battery type | Replaceable,1*18650 or 18500 battery,1*18650 inbuilt battery |
| Battery reverse connection | Yes |
| Battery life | 16h |
| Operating temperature | -20-+50°C |
| Protection Level | IP67 |
| Weight, g | 1117 |
| Size, mm | 435.7*103.9*92.9 |
| External Cable | USB data cable |
| Other Accessories | 2x standard 30mm rings, eyeshade and etc. |

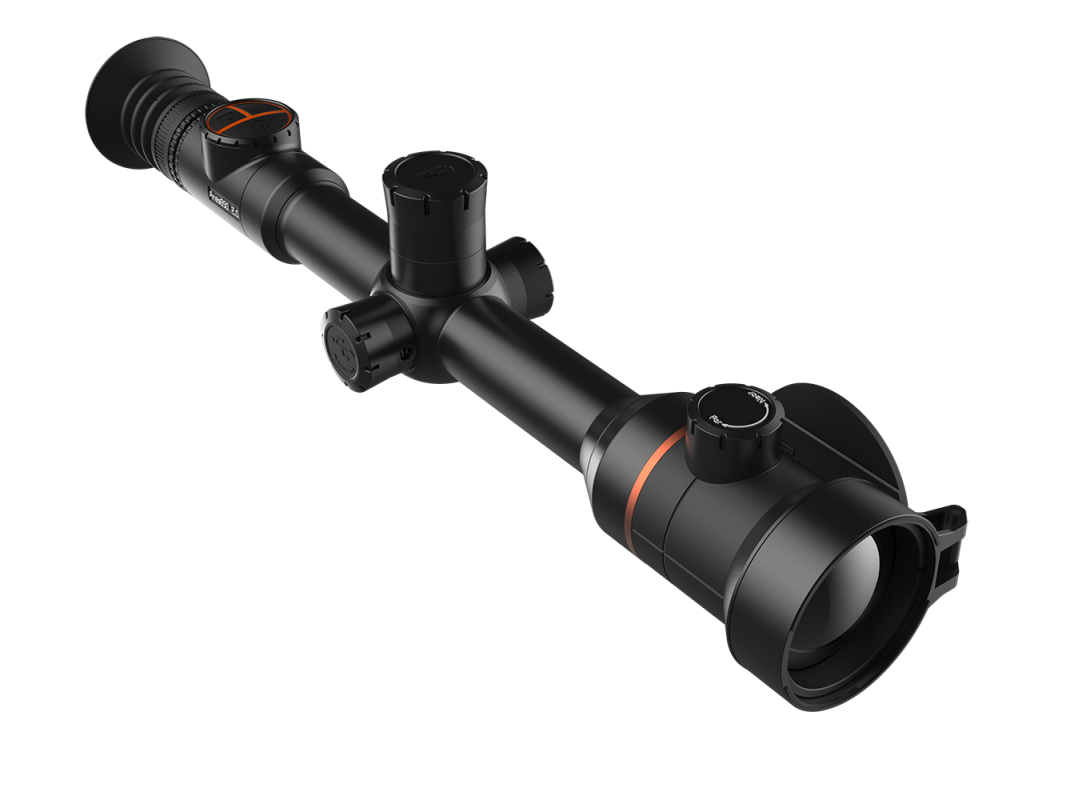

Ares 650L 2.0
| Type | Uncooled |
| Resolution | 640×512 |
| Pixel pitch | 12µm |
| NETD | ≤18mK |
| Spectral range | 8-14µm |
| Frame rate | 50HZ |
| Detection range | 2600m |
| Objective lens | 50mm, F1.0 |
| Field of view | 8.8° x 7.0° |
| m@100m | 15.4×12.3 |
| Magnification | 2.8X |
| Digital zoom | 1.0-4.0X smooth & rapid zoom |
| Eye relief | 50mm |
| Exit pupil | 6mm |
| Diopter | ±5D |
| Reticle | 7 |
| Reticle color | 5, Black, white, red, green, blue |
| Display Type | AMOLED |
| Display Resolution | 1024×768 |
| Display size | 0.39 inch |
| Color palette | 6 |
| Max. recoil power on rifled weapon | 6000J |
| Mounting brackets on weapon | Standard 30mm rings |
| RAV | Yes |
| Audio Recording | Yes |
| Auto zeroing | Yes |
| Manual zeroing | Yes |
| Zeroing profiles | 5 |
| Freeze Zeroing | Yes |
| Picture-in-picture | Yes |
| Laser ranging | 1.8mrad@1000m |
| Ballistic Calculator | Yes |
| Image calibration | Manual/Auto |
| Phone/video playback | Yes |
| Inbuilt memory | 64GB |
| Type C | Data transfer |
| Hotspot | Yes |
| Battery type | Replaceable,1*18650 or 18500 battery,1*18650 inbuilt battery |
| Battery reverse connection | Yes |
| Battery life | 16h |
| Operating temperature | -20-+50°C |
| Protection Level | IP67 |
| Weight, g | 918 |
| Size, mm | 404.8*92.2*84.9 |
| External Cable | USB data cable |
| Other Accessories | 2x standard 30mm rings, eyeshade and etc. |
Ares 360L 2.0
| Type | Uncooled |
| Resolution | 384×288 |
| Pixel pitch | 12µm |
| NETD | ≤ 20mK |
| Spectral range | 8-14µm |
| Frame rate | 50HZ |
| Detection range | 1000/3000m |
| Objective lens | 20/60mm, F1.0 |
| Field of view | 13.1° x 9.8°/4.4° x 3.3° |
| m@100m | 23×17.3/7.7×5.8 |
| Magnification | 1.8X/5.5X |
| Digital zoom | 1.0-4.0X smooth & rapid zoom |
| Eye relief | 50mm |
| Exit pupil | 6mm |
| Diopter | ±5D |
| Reticle | 7 |
| Reticle color | 5, Black, white, red, green, blue |
| Display Type | AMOLED |
| Display Resolution | 1024×768 |
| Display size | 0.39 inch |
| Color palette | 6 |
| Max. recoil power on rifled weapon | 6000J |
| Mounting brackets on weapon | Standard 30mm rings |
| RAV | Yes |
| Audio Recording | Yes |
| Auto zeroing | Yes |
| Manual zeroing | Yes |
| Zeroing profiles | 5 |
| Freeze Zeroing | Yes |
| Picture-in-picture | Yes |
| Laser ranging | 1.8mrad@1000m |
| Ballistic Calculator | Yes |
| Image calibration | Manual/Auto |
| Phone/video playback | Yes |
| Inbuilt memory | 64GB |
| Type C | Data transfer |
| Hotspot | Yes |
| Battery type | Replaceable,1*18650 or 18500 battery,1*18650 inbuilt battery |
| Battery reverse connection | Yes |
| Battery life | 18h |
| Operating temperature | -20-+50°C |
| Protection Level | IP67 |
| Weight, g | 1117 |
| Size, mm | 435.7*103.9*92.9 |
| External Cable | USB data cable |
| Other Accessories | 2x standard 30mm rings, eyeshade and etc. |
Ares 335L 2.0
| Type | Uncooled |
| Resolution | 384×288 |
| Pixel pitch | 12µm |
| NETD | ≤18mK |
| Spectral range | 8-14µm |
| Frame rate | 50HZ |
| Detection range | 1800m |
| Objective lens | 35mm, F1.0 |
| Field of view | 7.5°x5.6° |
| m@100m | 13.2×9.9 |
| Magnification | 3.2X |
| Digital zoom | 1.0-4.0X smooth & rapid zoom |
| Eye relief | 50mm |
| Exit pupil | 6mm |
| Diopter | ±5D |
| Reticle | 7 |
| Reticle color | 5, Black, white, red, green, blue |
| Display Type | AMOLED |
| Display Resolution | 1024×768 |
| Display size | 0.39 inch |
| Color palette | 6 |
| Max. recoil power on rifled weapon | 6000J |
| Mounting brackets on weapon | Standard 30mm rings |
| RAV | Yes |
| Audio Recording | Yes |
| Auto zeroing | Yes |
| Manual zeroing | Yes |
| Zeroing profiles | 5 |
| Freeze Zeroing | Yes |
| Picture-in-picture | Yes |
| Laser ranging | 1.8mrad@1000m |
| Ballistic Calculator | Yes |
| Image calibration | Manual/Auto |
| Phone/video playback | Yes |
| Inbuilt memory | 64GB |
| Type C | Data transfer |
| Hotspot | Yes |
| Battery type | Replaceable,1*18650 or 18500 battery,1*18650 inbuilt battery |
| Battery reverse connection | Yes |
| Battery life | 18h |
| Operating temperature | -20-+50°C |
| Protection Level | IP67 |
| Weight, g | 849 |
| Size, mm | 391.8*85.3*82.2 |
| External Cable | USB data cable |
| Other Accessories | 2x standard 30mm rings, eyeshade and etc. |
Ares 660 2.0
| Type | Uncooled |
| Resolution | 640×512 |
| Pixel pitch | 12µm |
| NETD | ≤20mK |
| Spectral range | 8-14µm |
| Frame rate | 50HZ |
| Detection range | 1000/3000m |
| Objective lens | 20/60mm, F1.0 |
| Field of view | 21.7°x17.4°/ 7.3°x5.9° |
| m@100m | 38.4×30.7/12.8×10.2 |
| Magnification | 1.1X/3.2X |
| Digital zoom | 1.0-4.0X smooth & rapid zoom |
| Eye relief | 50mm |
| Exit pupil | 6mm |
| Diopter | ±5D |
| Reticle | 7 |
| Reticle color | 5, Black, white, red, green, blue |
| Display Type | AMOLED |
| Display Resolution | 1024×768 |
| Display size | 0.39 inch |
| Color palette | 6 |
| Max. recoil power on rifled weapon | 6000J |
| Mounting brackets on weapon | Standard 30mm rings |
| RAV | Yes |
| Audio Recording | Yes |
| Auto zeroing | Yes |
| Manual zeroing | Yes |
| Zeroing profiles | 5 |
| Freeze Zeroing | Yes |
| Picture-in-picture | Yes |
| Al ranging | Yes |
| Image calibration | Manual/Auto |
| Phone/video playback | Yes |
| Inbuilt memory | 64GB |
| Type C | Data transfer |
| Hotspot | Yes |
| Battery type | Replaceable,1*18650 or 18500 battery,1*18650 inbuilt battery |
| Battery reverse connection | Yes |
| Battery life | 16h |
| Operating temperature | -20-+50°C |
| Protection Level | IP67 |
| Weight, g | 1072 |
| Size, mm | 435.7*89.5*92.9 |
| External Cable | USB data cable |
| Other Accessories | 2x standard 30mm rings, eyeshade and etc. |
Ares 650 2.0
| Type | Uncooled |
| Resolution | 640×512 |
| Pixel pitch | 12µm |
| NETD | ≤18mK |
| Spectral range | 8-14µm |
| Frame rate | 50HZ |
| Detection range | 2600m |
| Objective lens | 50mm, F1.0 |
| Field of view | 8.8° x 7.0° |
| m@100m | 15.4×12.3 |
| Magnification | 2.8X |
| Digital zoom | 1.0-4.0X smooth & rapid zoom |
| Eye relief | 50mm |
| Exit pupil | 6mm |
| Diopter | ±5D |
| Reticle | 7 |
| Reticle color | 5, Black, white, red, green, blue |
| Display Type | AMOLED |
| Display Resolution | 1024×768 |
| Display size | 0.39 inch |
| Color palette | 6 |
| Max. recoil power on rifled weapon | 6000J |
| Mounting brackets on weapon | Standard 30mm rings |
| RAV | Yes |
| Audio Recording | Yes |
| Auto zeroing | Yes |
| Manual zeroing | Yes |
| Zeroing profiles | 5 |
| Freeze Zeroing | Yes |
| Picture-in-picture | Yes |
| Al ranging | Yes |
| Image calibration | Manual/Auto |
| Phone/video playback | Yes |
| Inbuilt memory | 64GB |
| Type C | Data transfer |
| Hotspot | Yes |
| Battery type | Replaceable,1*18650 or 18500 battery,1*18650 inbuilt battery |
| Battery reverse connection | Yes |
| Battery life | 16h |
| Operating temperature | -20-+50°C |
| Protection Level | IP67 |
| Weight, g | 873 |
| Size, mm | 404.8*84.7*84.9 |
| External Cable | USB data cable |
| Other Accessories | 2x standard 30mm rings, eyeshade and etc. |
Ares 360 2.0
| Type | Uncooled |
| Resolution | 384×288 |
| Pixel pitch | 12µm |
| NETD | ≤20mK |
| Spectral range | 8-14µm |
| Frame rate | 50HZ |
| Detection range | 1000m/3000m |
| Objective lens | 20/60mm, F1.0 |
| Field of view | 13.1°x9.8°/ 4.4°x3.3° |
| m@100m | 23×17.3/7.7×5.8 |
| Magnification | 1.8X/5.5X |
| Digital zoom | 1.0-4.0X smooth & rapid zoom |
| Eye relief | 50mm |
| Exit pupil | 6mm |
| Diopter | ±5D |
| Reticle | 7 |
| Reticle color | 5, Black, white, red, green, blue |
| Display Type | AMOLED |
| Display Resolution | 1024×768 |
| Display size | 0.39 inch |
| Color palette | 6 |
| Max. recoil power on rifled weapon | 6000J |
| Mounting brackets on weapon | Standard 30mm rings |
| RAV | Yes |
| Audio Recording | Yes |
| Auto zeroing | Yes |
| Manual zeroing | Yes |
| Zeroing profiles | 5 |
| Freeze Zeroing | Yes |
| Picture-in-picture | Yes |
| Al ranging | Yes |
| Image calibration | Manual/Auto |
| Phone/video playback | Yes |
| Inbuilt memory | 64GB |
| Type C | Data transfer |
| Hotspot | Yes |
| Battery type | Replaceable,1*18650 or 18500 battery,1*18650 inbuilt battery |
| Battery reverse connection | Yes |
| Battery life | 18h |
| Operating temperature | -20-+50°C |
| Protection Level | IP67 |
| Weight, g | 1072 |
| Size, mm | 435.7*89.5*92.9 |
| External Cable | USB data cable |
| Other Accessories | 2x standard 30mm rings, eyeshade and etc. |
Ares 335 2.0
| Type | Uncooled |
| Resolution | 384×288 |
| Pixel pitch | 12µm |
| NETD | ≤18mK |
| Spectral range | 8-14µm |
| Frame rate | 50HZ |
| Detection range | 1800m |
| Objective lens | 35mm, F1.0 |
| Field of view | 7.5°x5.6° |
| m@100m | 13.2×9.9 |
| Magnification | 3.2X |
| Digital zoom | 1.0-4.0X smooth & rapid zoom |
| Eye relief | 50mm |
| Exit pupil | 6mm |
| Diopter | ±5D |
| Reticle | 7 |
| Reticle color | 5, Black, white, red, green, blue |
| Display Type | AMOLED |
| Display Resolution | 1024×768 |
| Display size | 0.39 inch |
| Color palette | 6 |
| Max. recoil power on rifled weapon | 6000J |
| Mounting brackets on weapon | Standard 30mm rings |
| RAV | Yes |
| Audio Recording | Yes |
| Auto zeroing | Yes |
| Manual zeroing | Yes |
| Zeroing profiles | 5 |
| Freeze Zeroing | Yes |
| Picture-in-picture | Yes |
| Al ranging | Yes |
| Image calibration | Manual/Auto |
| Phone/video playback | Yes |
| Inbuilt memory | 64GB |
| Type C | Data transfer |
| Hotspot | Yes |
| Battery type | Replaceable,1*18650 or 18500 battery,1*18650 inbuilt battery |
| Battery reverse connection | Yes |
| Battery life | 18h |
| Operating temperature | -20-+50°C |
| Protection Level | IP67 |
| Weight, g | 814 |
| Size, mm | 391.8*80.7*82.2 |
| External Cable | USB data cable |
| Other Accessories | 2x standard 30mm rings, eyeshade and etc. |
